Always unplug the pressure washer from both the mains power and the water outlet before starting the service. Even though power and water is disconnected there may be pressurized water in the hose. Discharge this pressure by pulling the trigger on the gun.
Make sure your work area is clean and appropriate for the work you are about to do. There will usually be a small amount of water inside the pump and hose.

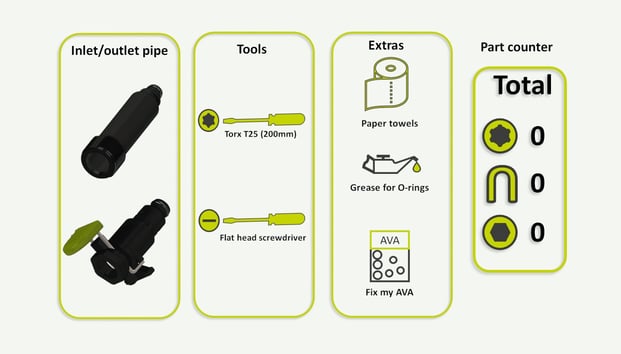

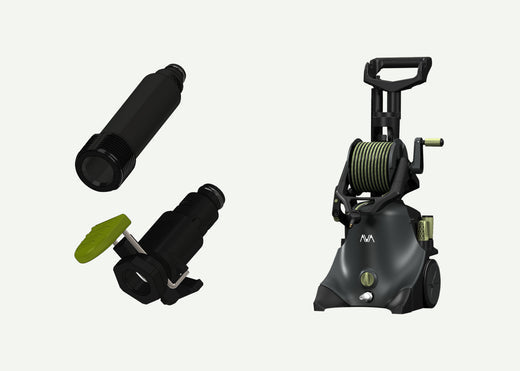

00. Parts and tools
An overview of what is needed to do this service.
01. Remove the water filter

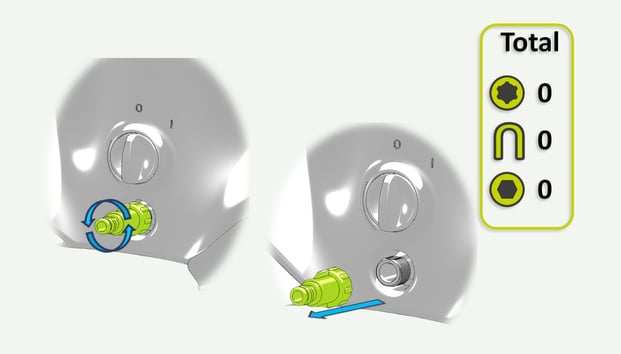

Unscrew the water filter and remove it.

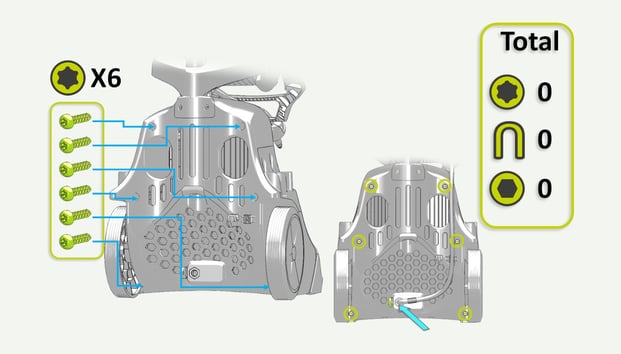

02. Remove screws

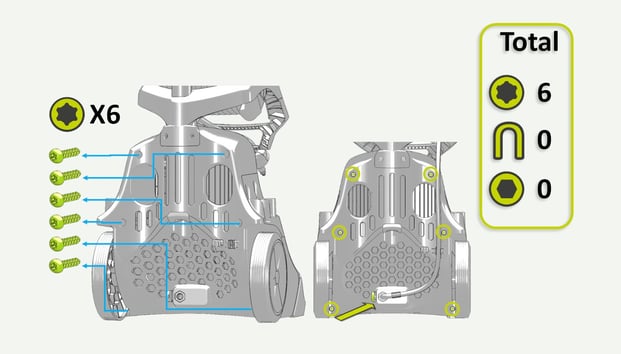

Release the short pressure hose from the pump outlet. Unscrew the six T25 screws from the back cabinet.

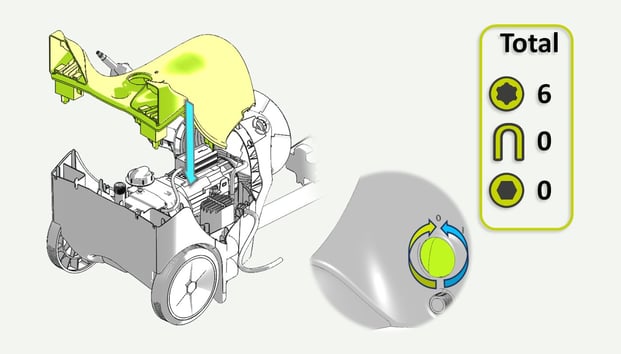

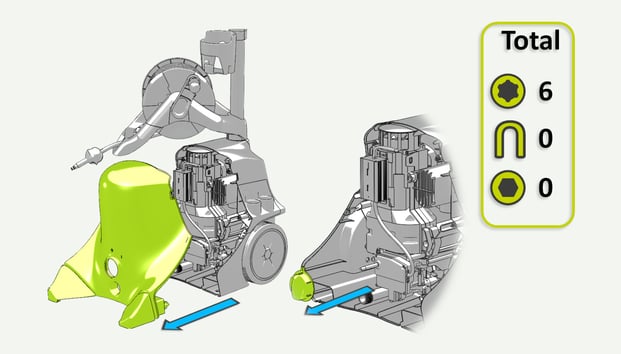

03. Remove the front cover
Remove the front cover. Then remove the on/off knob.

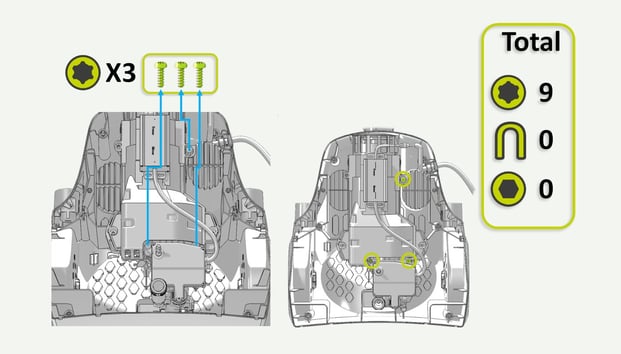

04. Remove screws

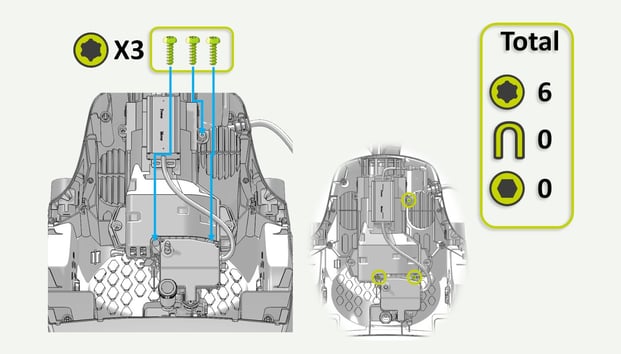

Unscrew the three T25 screws securing the motor/pump.

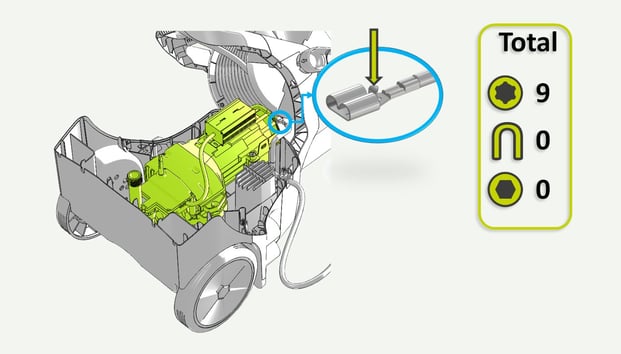

05. Disconnect the soft start box
Disconnect the power cable from the soft start box.

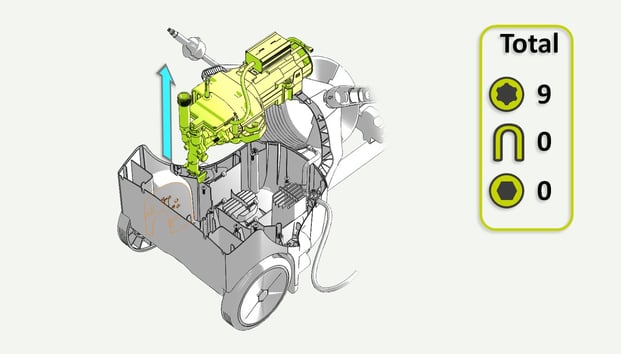

06. Remove the motor/pump
Carefully lift out the motor/pump assembly.

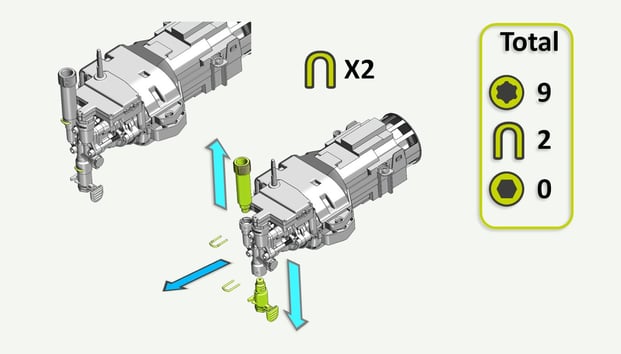

07. Remove inlet pipe
With the motor/pump out, remove the U-pins securing the inlet and/or outlet pipe. A flat head screwdriver or similar tool is useful to pry out these pins.
Then remove the inlet and/or outlet pipe from the pump head.

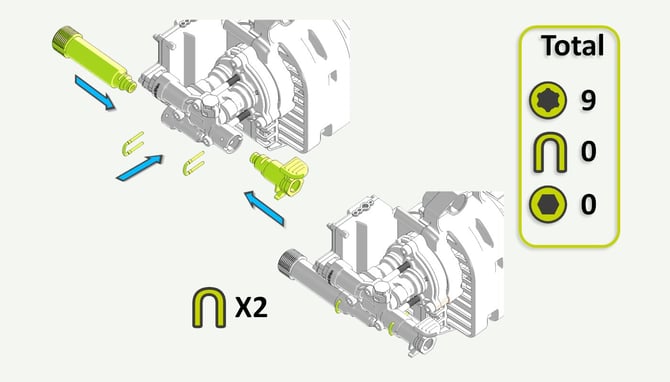

08. Attach inlet and outlet pipes
Attach the inlet and/or outlet pipes and secure them using the two U-pins. You may want to use a small hammer or something similar to lightly tap them into the pump head.

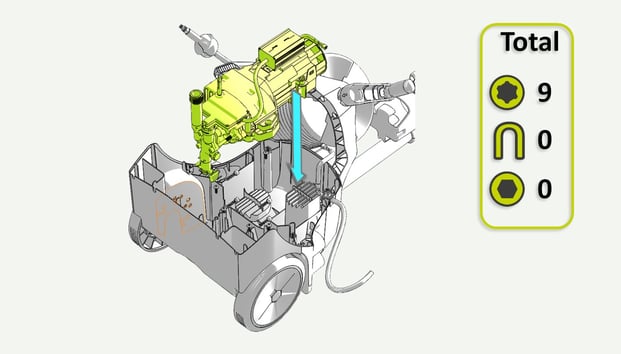

09. Put the motor/pump assembly into the rear cabinet
Turn the motor/pump unit so that the switch box and water inlet is facing up and place it back into the rear cabinet.
10. Secure the motor/pump
Secure the motor/pump and the switch box using the three T25 screws.
11. Connect the soft start box
Connect the power cable to the soft start box.
Put the on/off switch knob back on to the switch box.

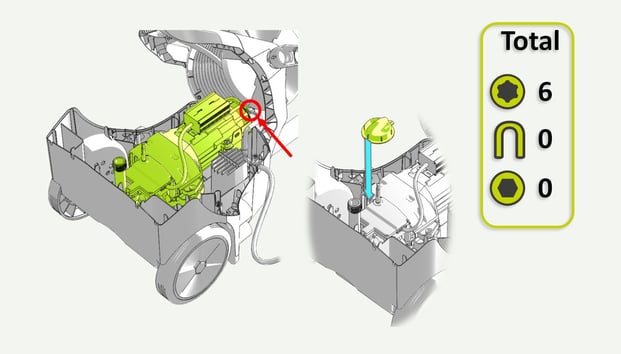

12. Fit the front cover
Carefully fit the front cover to the back cabinet of the pressure washer.
Make sure the on/off button is properly positioned so that it can operate freely.
13. Secure the front cover
Make sure that the front and back cover is perfectly aligned. Secure the front cover using six T25 screws.

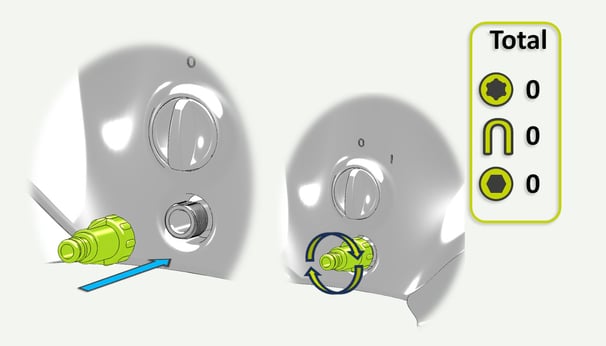

Attach the short pressure hose to the outlet connector at the back.
14. Attach water filter
Check that the filter cassette is clean, then refit the water filter.
