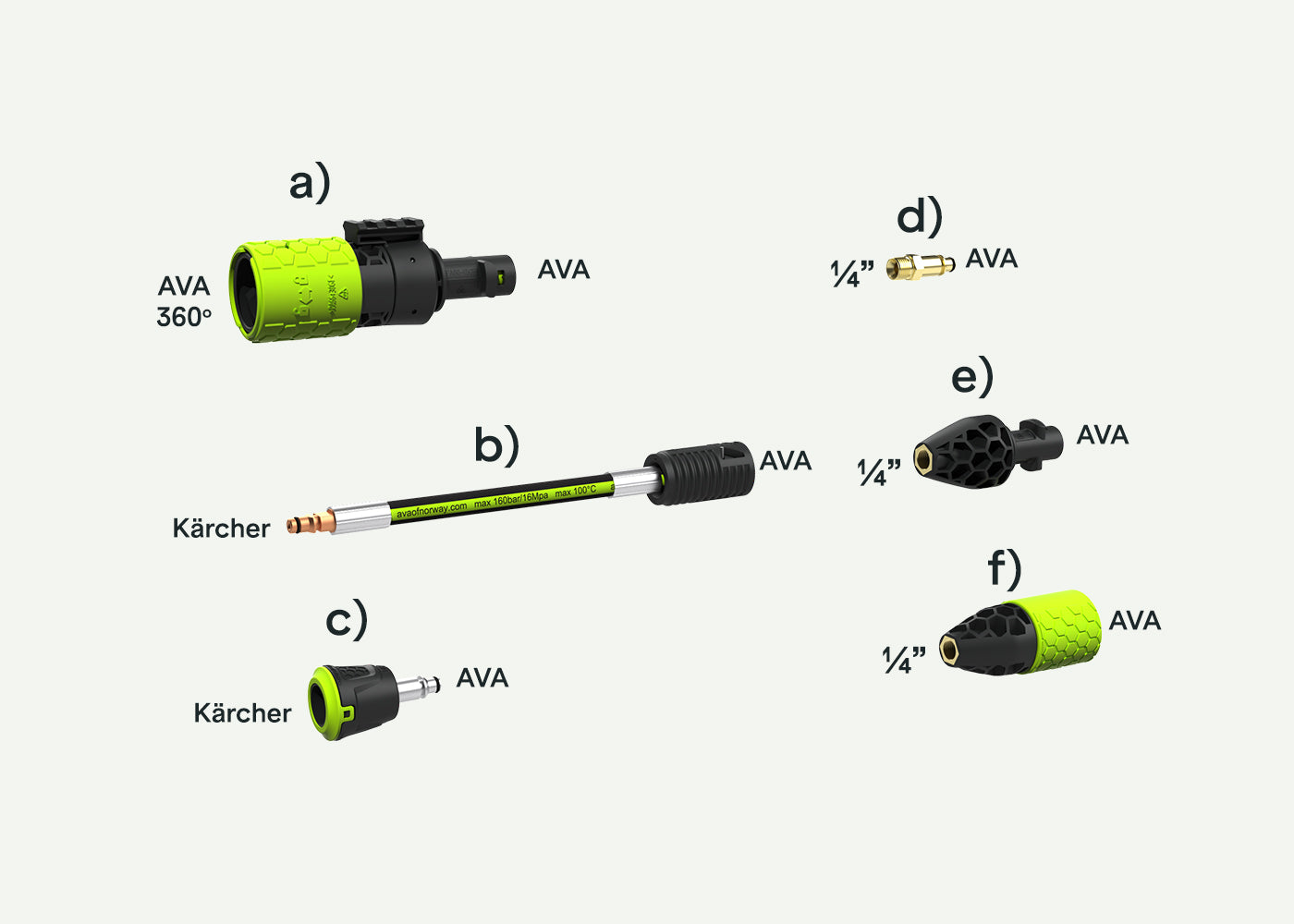

AVA adapters: Areas of use

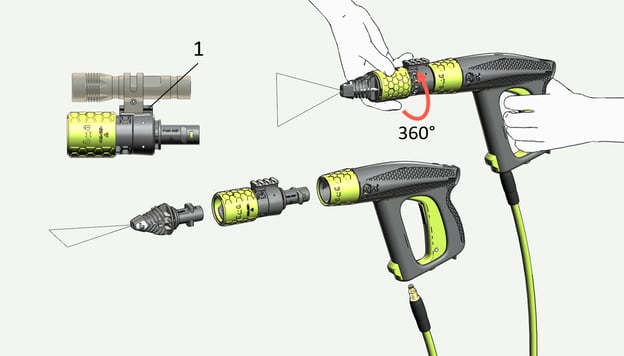

The AVA Accessory Swivel allows you to rotate nozzles and other accessories in 15-degree increments, covering a full 360 degrees.

By turning the swivel, you can adjust the angle to always achieve the perfect working position, regardless of the task.

The swivel have a NATO Accessories Rail (1), which is a interface system standard for mounting accessory equipment.

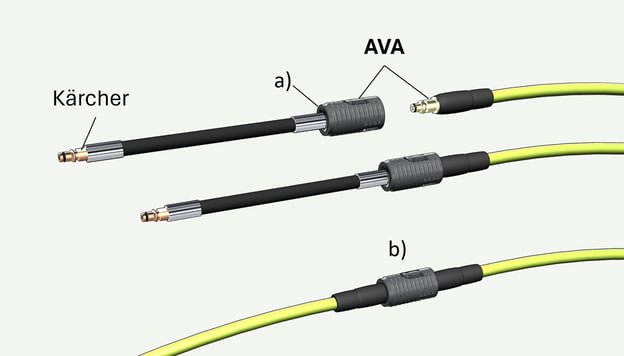

An adapter that allows you to use AVA hoses and equipment on a Kärcher pressure washer.

The Female hose Coupling has AVA interface in both ends and could also be used to connect two AVA hoses together b).

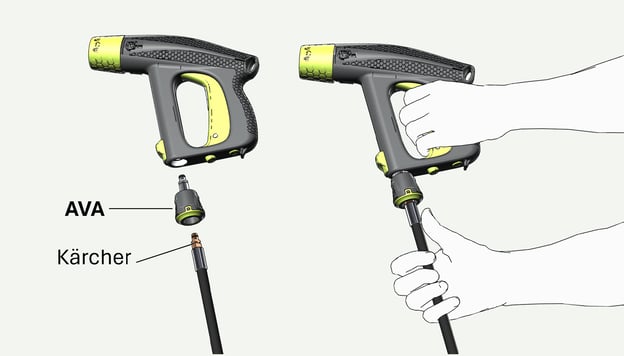

Adapter that allows you to connect your Kärcher hose to an AVA pistol or AVA Telescopic lance

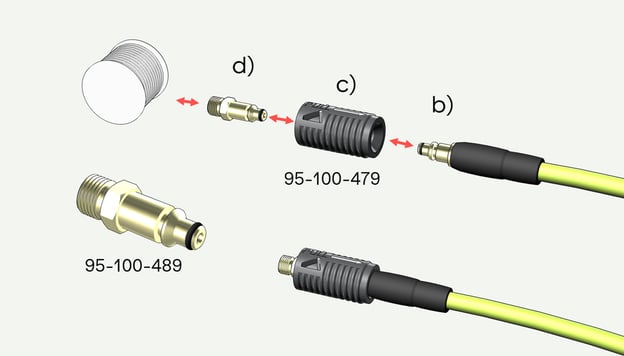

If you need an adapter with threads to connect AVA to a reel, you can easily do this by using a Female-Female coupling c) at the end of the hose b) and an AVA-Male to ¼" threads d) at the other end.

When you connect these, you get threads that you can use for any high-pressure equipment. AVA doesn't provide adapters for ⅜" or other variations, but you should be able to find them easily at stores that carry pipe fittings or at workshops.

The AVA Bayonet Male was created so that anyone already owning a range of equipment may still continue to use them, while combining them with new products from AVA.

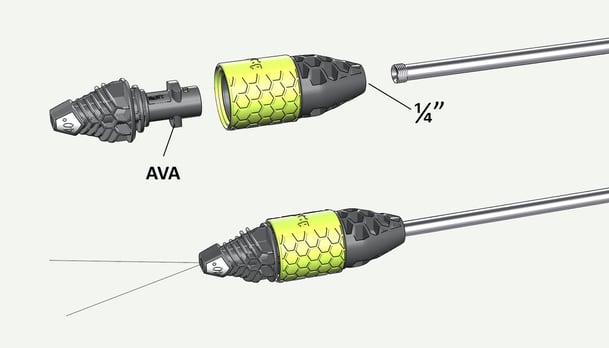

The Male Bayonet nozzle fitting is a pressure washer adapter when you want to use accessories with threads on AVA or Kärcher pressure gun.

It has ¼" threads and should be used with maximum 160 bar.

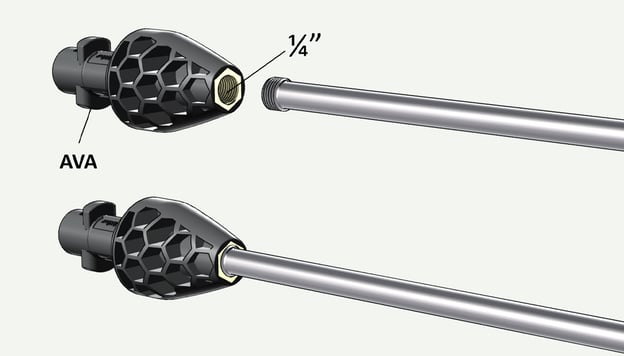

This adapter is for lances or other fittings with 1/4” threads. Perfect if you want to use AVA or Kärcher accessories with other brands of pressure washers.
