Always unplug the pressure washer from the main power and the water outlet before starting the service.
Even though power and water are disconnected there may be pressurized water in the hose. Discharge this pressure by pulling the trigger on the gun.
Make sure your work area is clean and appropriate for the work you are about to do. There will usually be a small amount of water inside the pump and hose.

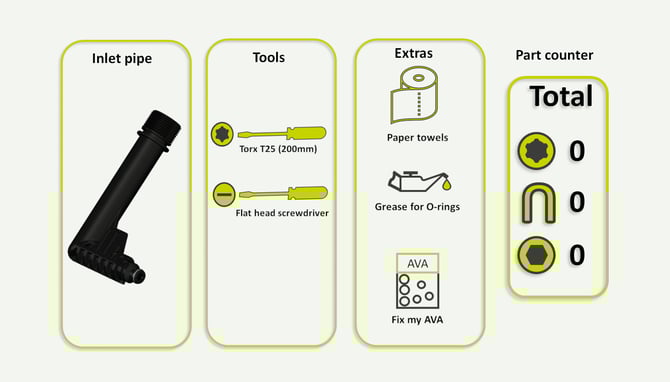

00. Parts and tools
An overview of what is needed to do this service.

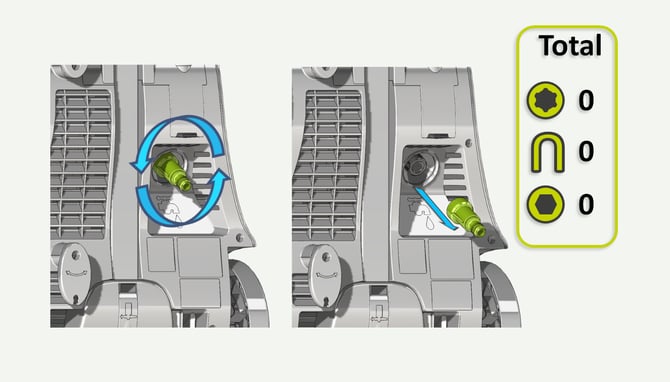

01. Remove the water filter
Unscrew the water filter and remove it.

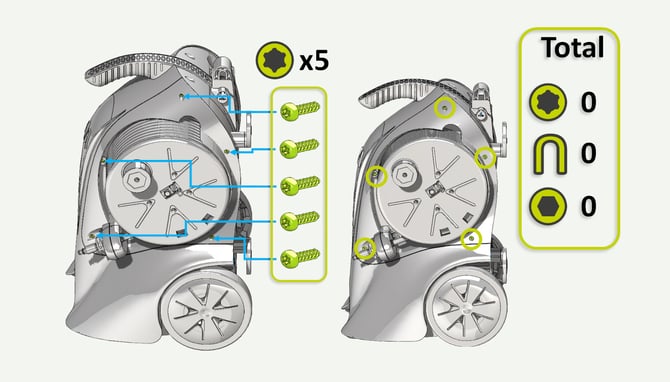

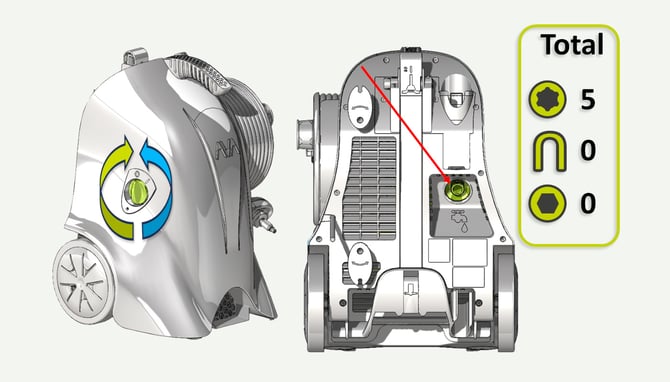

02. Remove screws
Unscrew the 5 T25 screws from the hose reel assembly.

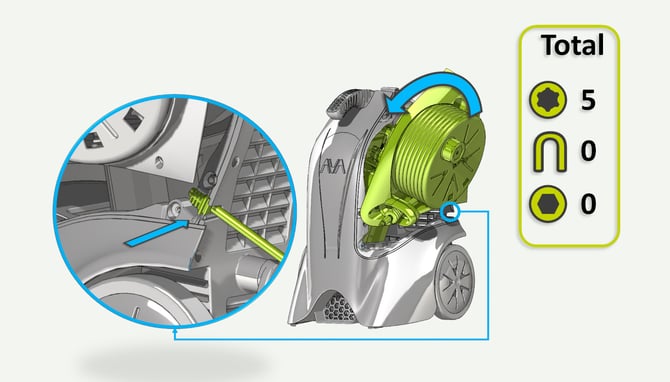

03. Remove the hose reel assembly
Get a firm grip on the hose reel assembly. Lift it upwards and outwards. Pull the assembly out of the cabinet. Make sure to release the power cable strain reliever from its slot.

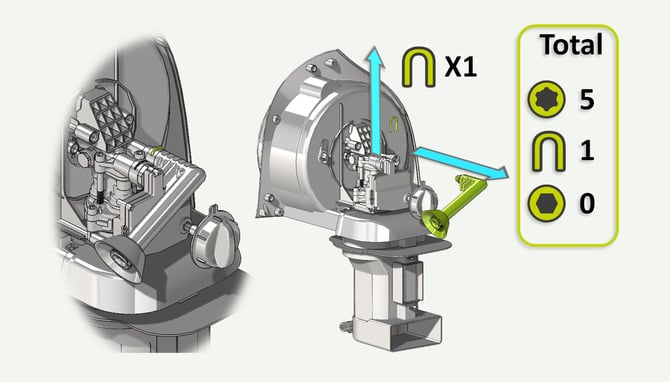

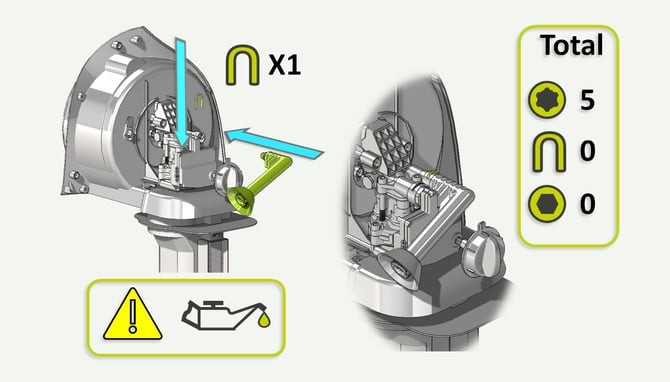

04. Remove the inlet pipe
Use a flat head screwdriver to remove the U-pin and then pull off the water inlet pipe.

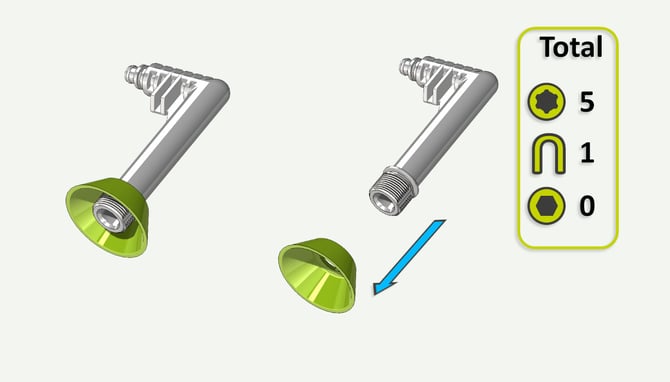

05. Remove rubber cone
Remove the rubber cone from the old water inlet pipe.

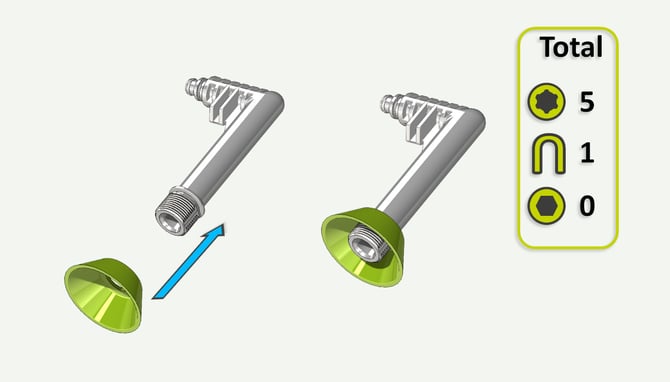

06. Attach rubber cone
Attach the rubber cone to the new water inlet pipe
07. Reattach the water inlet pipe
Put some grease on the O-ring on the water inlet pipe. Fit the water inlet pipe to the pump head and secure it using a U-pin.
08. Secure the pump head bracket
Secure the pump head bracket using 2 T25 screws.
09. Put the hose reel assembly back in to the main cabinet
Fit the power cable strain reliever in its slot.
Get a firm grip on the hose reel assembly. Lift the whole assembly and slide it into the cabinet. Some wiggling may be needed for the assembly to be properly seated.
10. Align the hose reel assembly
To check that the motor/hose reel assembly is properly seated, turn the on/off knob to see that it can operate freely. Also check that the water inlet is centered in its opening in the back cabinet.
11. Secure the motor/hose reel assembly
Once you are sure that the motor/hose reel assembly is properly aligned, you can secure the assembly using 5 T25 screws.

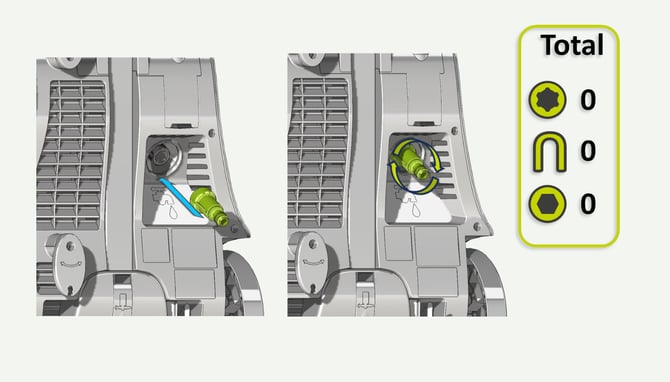

12. Reattach water filter
Check that the filter cassette is clean, then refit the water filter.
13. First start after service
Congratulations on finishing the service of your AVA product.
It is now time to do the first start after service.
- Start by connecting the pressure gun to the hose.
- Connect water.
- Make sure no water is leaking from the inside or anywhere else on the pressure washer.
- Pull the trigger and let the water flow until no more air comes out.
- Connect the power cord.
- Turn on the pressure washer.
- Pull the trigger and let the water run for a minute before connecting a nozzle.
- Connect the nozzle. Use the pressure washer and make sure it is operating as normal.
14. Troubleshooting
Water is leaking from the inside
- Disconnect the power and open the pressure washer to locate the leak. Take necessary action to remedy any leaks.
The motor runs and won't stop when you release the trigger
- This is most likely due to improper seating of the switch box on the start/stop valve. Open the machine and check that the switch box is correctly seated.
The pressure washer won't turn on
- Check that the power cable is connected.
- Check that the circuit breaker has not been tripped.•Check that the fuse in the power plug is intact (UK models only).
- Open the machine and check that all the internal cabling is connected.
Poor performance/pressure
- Improper assembly or dirt/debris in the pump. Check the pump and especially the main valve for foreign objects/debris. Ensure the spring in the main valve is correctly seated and working as intended.
