Safety first! To prevent any accidents, ensure that your pressure washer is turned off and unplugged from its power source.

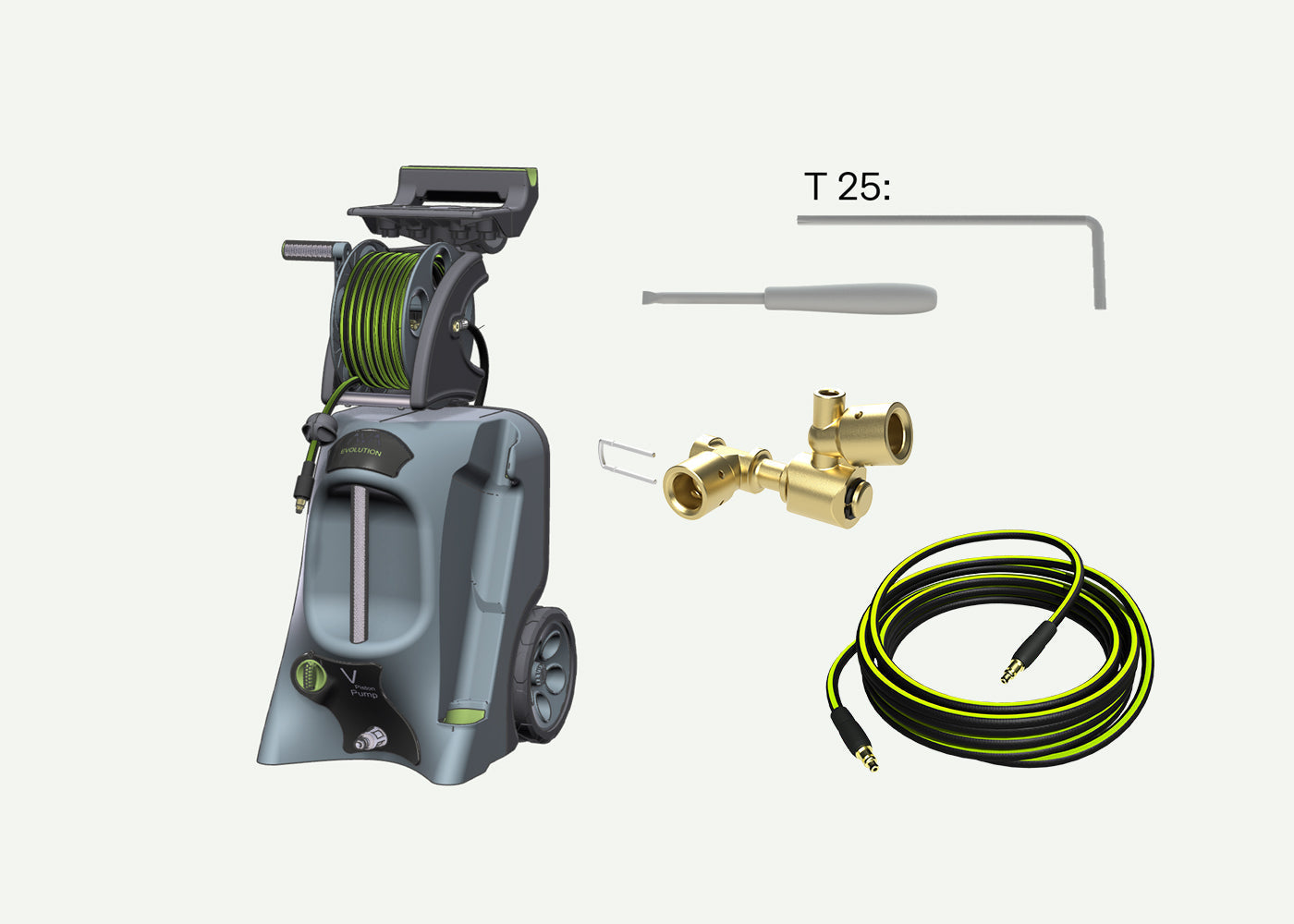

Learn how to easily replace the hose & swivel on your Evolution pressure washer with this step-by-step guide. All you need are Torx 25 and one flathead screwdriver, or similar tools.

Remember! New swivel kits are complete with swivel, square head quick connector and C-clip

Swivel: 902-101-01. Hose: 11-120-405

1. Disconnect /replace hose

a) Pull the hose completely until all the hose is out of the reel, allowing you to see the swivel.


b) Use a flathead screwdriver or similar to remove the U-pin.


c) Pull out the hose.


d) If you want to replace a new hose: Put the new hose into the quick connector and reinstall the u-pin: Insert the u-pin into the slot and push it all the way into the quick connector. If the U-pin is difficult to insert, gently tap it with a small hammer or a similar tool.

If the new hose have a female coupler please see article: AVA Steel-Reinforced Hose with Female Coupling

pressure-washer-maintenance-guides-evolution-series-replace-swivel-hose-01

2. Disconnect the internal hose

a) Use a flathead screwdriver or similar, to tilt out the U-pin.


b) Pull the internal house out of the reel.

pressure-washer-maintenance-guides-evolution-series-replace-swivel-hose-02

3. Disassembly swivel

a) Use a flathead screwdriver or similar uninstall the e-clip.


b) Dismount the swivel.

pressure-washer-maintenance-guides-evolution-series-replace-swivel-hose-03

4. Install new swivel

a) Assemble swivel.


b) Secure swivel with e-clip.


c) Install internal hose and secure it with u-pin.


d) Install hose into swivel and secure it with u-pin.

pressure-washer-maintenance-guides-evolution-series-replace-swivel-hose-03
